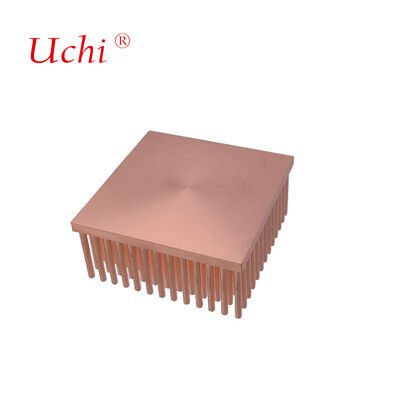

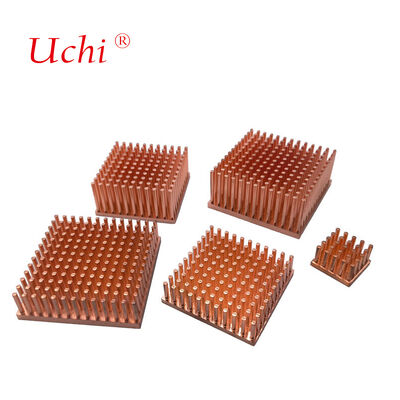

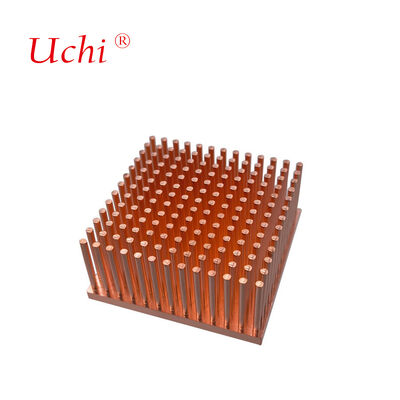

Mini Square Copper Cold Forged Pin Fin Heat Sink
Подробная информация о продукте:
| Место происхождения: | Dongguan ， Guangdong, Китай |
| Фирменное наименование: | Uchi |
| Сертификация: | SMC |
| Номер модели: | Холоднокованый радиатор 04 |
Оплата и доставка Условия:
| Количество мин заказа: | 100 шт. |
|---|---|
| Цена: | Подлежит переговорам |
| Условия оплаты: | T/T, PayPal, Western Union, MoneyGram |
| Поставка способности: | 50000000 шт в месяц |
|
Подробная информация |
|||
| Оценка: | 1000 серий | Сплав или нет: | Сплав |
|---|---|---|---|
| Служба обработки: | Ковка вхолодную, CNC | Характер: | Т3~Т8 |
| Обработка поверхности: | Анодирование, пескоструйная обработка, нарезание резьбы, удаление заусенцев | Цвет: | Индивидуальный цвет |
| Толерантность: | ±1% | Материал: | Медь |
| Выделить: | mini copper pin fin heat sink,square cold forged heat sink,liquid cooling plate with pin fins |
||
Характер продукции
Mini Square Copper Cold Forged Pin Fin Heat Sink
High-performance copper heat sink manufactured using advanced cold forging technology for superior thermal management solutions.
Product Advantages
Manufactured from T1/T2 pure copper using cold forging process, featuring thermal conductivity up to 390W/m·K. Achieves optimal balance among thermal performance, reliability, cost, weight and dimensions. Compared with traditional processes, thermal resistance is reduced by 40%.
| Materials | Copper (1020/1100), Aluminum (1060/1070/6063/6061) |
|---|---|
| Surface Treatment | Plating, Coating, Painting, Anodizing, Sandblasting, Tapping, Deburring, Chromating, Laser Marking, Degreasing, Passivation, Clearing |
| Processing | CNC Machining, Extrusion, Cutting, Cold forging, Die casting, Stamping, Skiving, Folding, Inserting, FSW (Friction Stir Welding), Welding, Epoxy, Nickel Plating, Bending, Soldering, Cross Cutting, Milling, Drilling |
| Dimension | Customized size or Customer's Drawing Required |
| Application | LED Lighting, Solar Inverter, Power Supply Equipment, Medical Ventilator, IGBT, Electric Automotive, Desktop Liquid Cooling, Communication Device, CPU Cooler, Industrial Equipment |
| Drawing Accepted | AutoCAD (dxf, dwg), PDF, 3D (STEP/IGS) |
| Service | Support for customize or according to customer's requirements |
Forging Process Comparison
Advantages of Cold Forging: No black scale remains at the root of the pillars after CNC machining.
Disadvantages of Hot Forging: Large areas of black scale are left at the root of the pillars after CNC machining.
Disadvantages of Hot Forging: Large areas of black scale are left at the root of the pillars after CNC machining.
Technical Specifications
Manufacturing Processes
Industry Applications
- New Energy Vehicle Sector: Motor / Electronic Control System, Battery Pack System, Charging Pile Module
- Industrial High-power Equipment Sector: Frequency Converter / Servo System, High-power Power Supply, Laser Equipment
- Consumer Electronics and High-end Equipment Sector: High-performance Consumer Electronics, Aerospace Equipment
- New Energy Energy Storage Sector
Advanced Equipment & Precision Machining
Our mold workshop features comprehensive manufacturing capabilities including 22 sets of electric discharge machines (EDM) with 2 MAKINO mirror EDM machines, 9 wire-cut EDM machines (low-speed) with 3 Seibu and 1 Sodick imported from Japan, 7 spark erosion machines, 10 grinding machines, 2 milling machines, and 1 lathe.
| Specification | Capability |
|---|---|
| Table Size | 500×350 mm |
| Rapid Traverse Speed | 5000 mm/min |
| Maximum Workpiece Weight | 500 kg |
| Maximum Electrode Weight | 50 kg |
High Machining Precision: Utilizing SuperSpark4 and IES (Intelligent Expert System) technologies for advanced adaptive power supply and jump control to stabilize EDM processes and improve precision. Equipped with ultra-surface and ultra-edge generator technologies for excellent surface finish and metallurgical quality.
Manufacturing Facilities
Quality Assurance
We maintain rigorous quality standards with comprehensive testing equipment:
- 1 Coordinate Measuring Machine
- 1 projector instrument
- 2 water high pressure testing machines
- 4 thermal resistance testing machines
- 2 liquid leakage testing machines
Customer Service Commitment
- Prompt response to all inquiries
- Competitive pricing with guaranteed quality
- Efficient production scheduling
- Optimal transportation solutions
- Comprehensive technical support
Frequently Asked Questions
Are you a trading company or manufacturer?
We are a professional manufacturer of heat sinks and water cooling plates with extensive experience and a strong technical team, featuring automated and mechanized production.
Have you exported goods before and to which regions?
60% of our total production is exported to Japan, India, UK, Canada, USA, and Brazil.
How many employees do you have?
Approximately 100 employees across sales, purchasing, engineering, QA, warehouse, and production departments.
Can you provide samples if we agree with the design?
Yes, we provide samples for confirmation before mass production, along with technical drawings if required.
What packing methods do you use?
Customized packing with normal cartons and tight-proof fabric or wooden cartons for optimal protection during transportation.
Do you provide technical support for product issues?
All products are fully inspected before shipping. For any issues, we provide immediate technical solutions.
