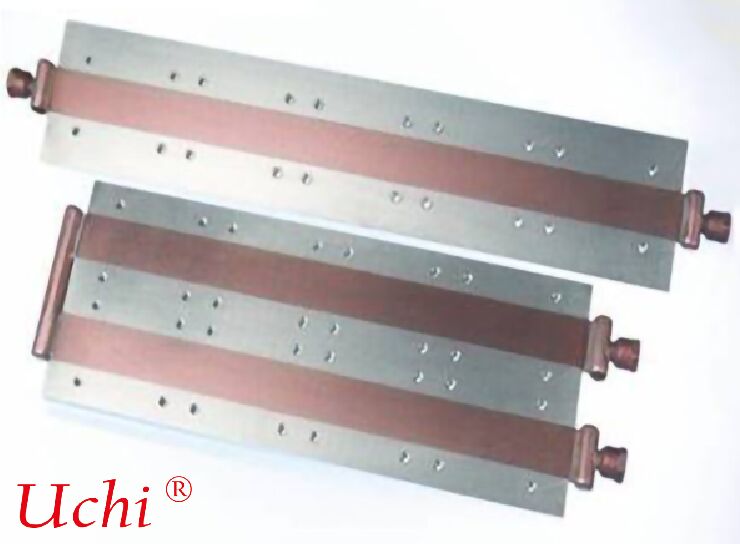

Radiator-Integrated Liquid Cooling Plate Integrated Heat Dissipation Fins
Подробная информация о продукте:
| Место происхождения: | Дунгуань, Гуандун, Китай |
| Фирменное наименование: | Uchi |
| Сертификация: | SMC |
| Номер модели: | Радиатор |
Оплата и доставка Условия:
| Количество мин заказа: | 100 шт. |
|---|---|
| Цена: | 1300-1500 dollars |
| Время доставки: | Не ограничен |
| Условия оплаты: | T/T, PayPal, Western Union, MoneyGram |
| Поставка способности: | 50000000ПК в месяц |
|
Подробная информация |
|||
| материал радиатора: | Алюминий | Поверхностная обработка: | Отделка мельницы или анодирование |
|---|---|---|---|
| Материал: | Медь/Алюминий | жизнь фаната: | 100000 часов |
| Глубокий процесс: | Обработка на станке с ЧПУ | Проводящая мощность: | 2000 Вт |
| Толерантность: | ±1% | Дополнительный процесс: | Обработка на станке с ЧПУ |
| Точность: | ± 0,002 ~ ± 0,005 мм | Максимальное давление: | 5 бар |
| Диапазон рабочих температур: | от -40°С до 120°С | Текстура материала: | 6061 |
| Выделить: | Radiator-integrated liquid cooling plate,Liquid cooling plate with heat dissipation fins,High-performance liquid cooling radiator plate |
||
Характер продукции
Radiator-Integrated Liquid Cooling Plate
In simple terms: Radiator-Integrated Liquid Cooling Plate = Liquid cooling plate + integrated heat dissipation fins
It attaches to heat-generating devices on one side and features dense fins on the other. Heat is transferred to the fin area via coolant circulation, forming a compact, all-in-one liquid cooling solution.
I. Structural Features
Bonding Surface (Cold Plate Side)
Flat surface that directly attaches to IGBTs, power modules, batteries, motors and other heat-generating components.
Fin Heat Dissipation Side (Radiator Side)
Internal flow channels extend into the dense fin region, forming a structure similar to a radiator.
As coolant flows through, heat is carried to the fins and dissipated via air cooling or natural convection.
Fully Integrated Structure
Mostly manufactured as one piece through skiving, die-casting or brazing,
eliminating the complex assembly of separate radiators and water tubes.
II. Working Principle
- Heat from components → conducts to the liquid cooling plate base
- Coolant flows through internal channels and absorbs heat
- Heated coolant flows into the finned radiator section
- Fins release heat into the environment via fans or natural airflow
- Cooled coolant circulates back to repeat the process
It is a hybrid solution combining liquid cooling heat transfer and air cooling final dissipation.
III. Core Advantages
-
Compact structure & high integrationAll-in-one design saves space, reduces connectors and leakage points.
-
Simple installationDirectly mounted to components; only an external pump and reservoir are needed, no extra radiator required.
-
Uniform heat dissipationExcellent temperature uniformity on the base plate, avoiding local hotspots.
-
High reliabilityBrazed or skived structure provides strong vibration resistance, ideal for automotive and industrial control applications.
IV. Common Manufacturing Processes
-
Skived Radiator-Integrated Liquid Cooling PlateFins and flow channels machined from a single aluminum block, offering high strength and continuous thermal conductivity.
-
Vacuum Brazed TypeBase plate and fins joined by brazing, with denser fins and larger heat dissipation area.
-
Integral Die-Casting TypeSuitable for mass production and low cost, widely used in passenger vehicle thermal management.
V. Typical Applications
- New energy vehicles: integrated cooling for motors, ECU, OBC, DC-DC converters
- Energy storage converters (PCS), photovoltaic inverters
- Industrial servo drives, high-power power supplies
- Laser equipment, welding machines, high-frequency power supplies
- Construction machinery, commercial vehicle controller cooling
VI. Difference from Standard Liquid Cooling Plates
- Standard liquid cooling plate: only absorbs and transfers heat; does not dissipate heat directly to the environment.
- Radiator-integrated liquid cooling plate: absorbs heat, circulates internally, and dissipates heat via its own fins, forming a complete compact cooling system.
