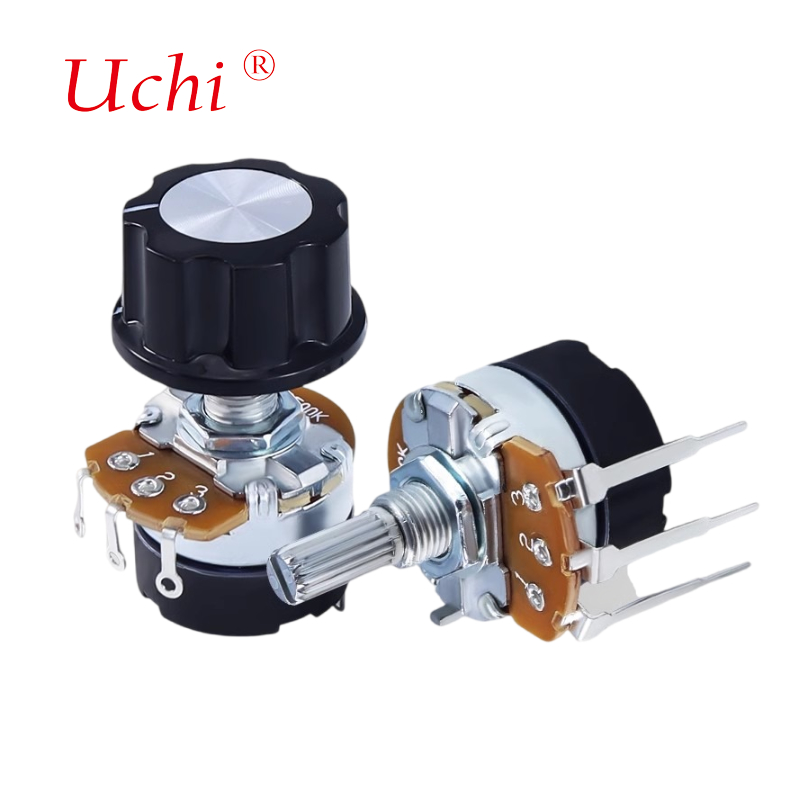

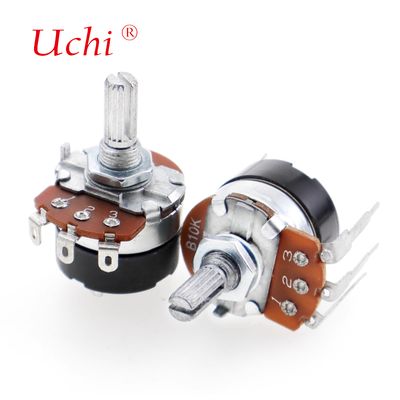

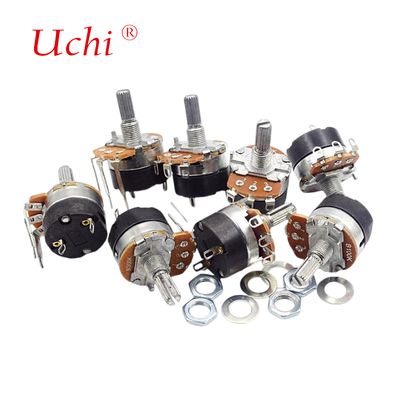

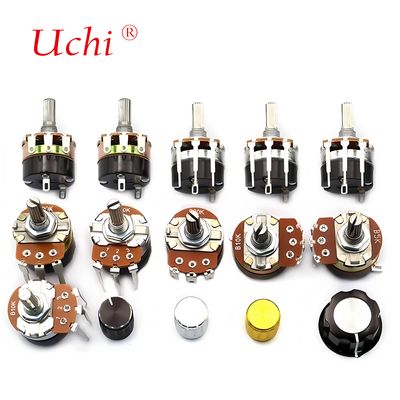

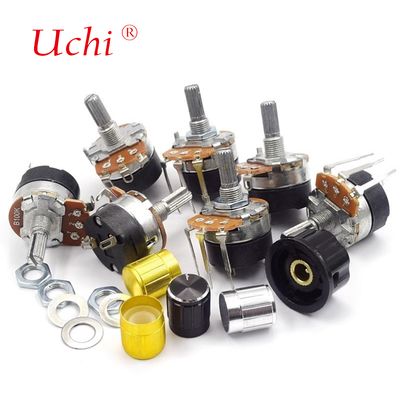

WH138 Resistance Speed Regulator 24mm Carbon Film Rotary Potentiometer
Подробная информация о продукте:
| Место происхождения: | Dongguan ， Guangdong, Китай |
| Фирменное наименование: | Uchi |
| Сертификация: | SMC |
| Номер модели: | WH138 |
Оплата и доставка Условия:
| Количество мин заказа: | 100 шт |
|---|---|
| Цена: | Подлежит переговорам |
| Условия оплаты: | T/T, PayPal, Western Union, MoneyGram |
| Поставка способности: | 50000000 шт в месяц |
|
Подробная информация |
|||
| Сопротивление: | 1КОм~2МОм | Диапазон температур: | Кривая B: 0,5 Вт Другая кривая B: 0,25 Вт |
|---|---|---|---|
| Максимальное рабочее напряжение: | Кривая B: 500 В Другая кривая B: 250 В | закон сопротивления: | А, Б, С. |
| Полный вращательный угол: | 300 ° ± 5 ° | Устойчивость к сопротивлению: | ± 20 (%) |
| Функции: | углеродный пленочный потенциометр | Разрешить сопротивление сопротивлению: | ±20% (1 МОм или более30%) |
| Вращательный крутящий момент: | 2~20 мНм(20~200гс.см) | Роторная жизнь: | 10 000 циклов |
| Выделить: | 24mm carbon film potentiometer,rotary speed regulator potentiometer,WH138 resistance speed controller |
||
Характер продукции
WH138 Resistance Speed Regulator 24mm Carbon Film Rotary Potentiometer
High-quality carbon film rotary potentiometer designed for precise speed regulation in various electronic applications.
Electrical Characteristics
| Parameter | Specification |
|---|---|
| Temperature Range | -10℃~70℃ |
| Rated Power | Curve B: 0.5W Other curve B: 0.25W |
| Max Operation Voltage | Curve B: 500V Other curve B: 250V |
| Resistance Range | 1KΩ~2MΩ |
| Allowable Resistance Tolerance | ±20% (1MΩ or more 30%) |
| Rotational Noise | ≤47mV |
| Terminal Resistance | R≥250KΩ: 0.1%R max 250KΩ>R>10KΩ: 20Ω max 10KΩ≥R: 10Ω max |
| Resistance Law | A, B, C |
| Dielectric | AC500V, 1 minute |
| Insulation Resistance | More than 100MΩ at DC500V |
Mechanical Characteristics
| Parameter | Specification |
|---|---|
| Rotational Torque | 2~20 mN.m (20～200gf.cm) |
| Total Rotational Angle | 300°±5° |
| Rotary Life | 10,000 cycles |
| Shaft Stopper Strength | 6Kgf.cm |
| Soldering | Temperature T≤265℃: time ts5s |
Product Dimensions
Product Applications
Manufacturer Information
We are a specialized factory with extensive experience in high-quality electronic component manufacturing.
- Advanced production equipment
- Professional R&D team
- OEM/ODM capabilities
- Strict quality control standards
Shipping & Support
We offer reliable global shipping solutions with comprehensive after-sales support:
- Express Mail Service
- DHL Express
- UPS
- FedEx
Frequently Asked Questions
Are you a factory or trading company?
We are a factory offering direct pricing with professional technical support.
Could you provide samples?
Samples are available upon request after order placement.
Can your product be customized?
We accept OEM/ODM orders with flexible requirements.
What is your delivery time?
Delivery varies by quantity and model, with urgent requests accommodated when possible.
Do you offer after-sales service?
We provide comprehensive 24-hour support for all products.
Хотите узнать больше подробностей об этом продукте
