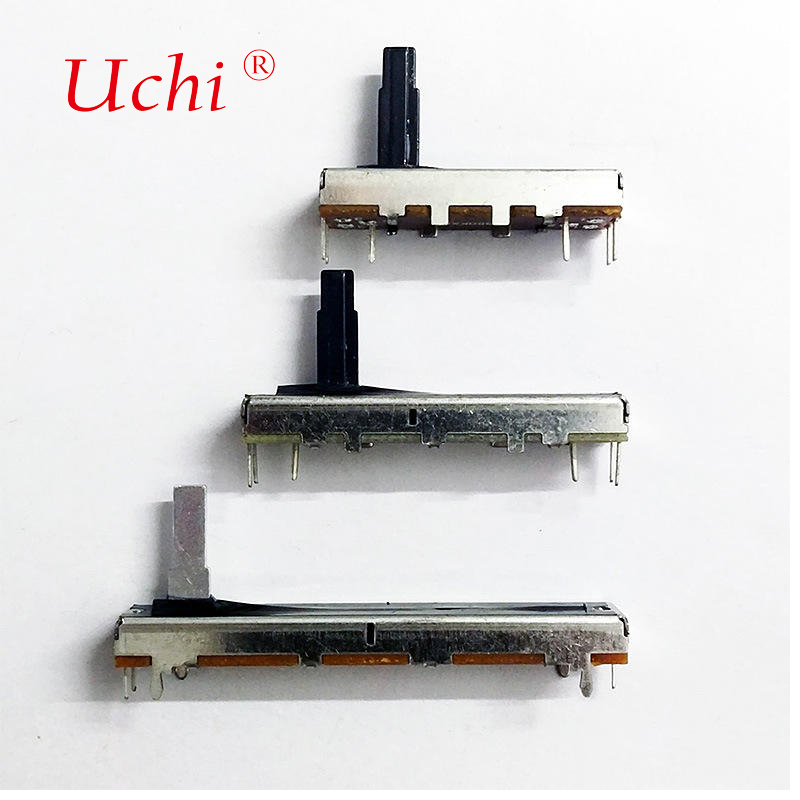

WH3012P 30mm 45mm Stereo Dual Sliding Potentiometer B10K Travel Sliding Potentiometer
Подробная информация о продукте:
| Место происхождения: | Dongguan ， Guangdong, Китай |
| Фирменное наименование: | Uchi |
| Сертификация: | SMC |
| Номер модели: | WH3012P |
Оплата и доставка Условия:
| Количество мин заказа: | 100 шт |
|---|---|
| Цена: | Подлежит переговорам |
| Условия оплаты: | T/T, PayPal, Western Union, MoneyGram |
| Поставка способности: | 50000000 шт в месяц |
|
Подробная информация |
|||
| Полное сопротивление: | 10 кОм±20% | Сопротивление уменьшается: | А, Б, В, Г, Д, МН, РД, Ж, |
|---|---|---|---|
| Максимальн Деятельность Напряжение тока: | Линейный конус B: 200 В~DC/В переменного тока | Номинальная мощность: | Одиночный блок: линейный конус B: 0,2 Вт, другие конусы: 0,05 Вт Двойной блок: линейный конус B: 0,1 |
| Шум скольжения: | Менее 100 мВ | Устойчивость к изоляции: | Более 100 МОм при 250 В постоянного тока |
| Выдерживая напряжение: | 1 минута при 300 В переменного тока | Остаточное сопротивление: | Срок. 1~2: менее 10 Ом |
| Ошибка банды (двойной блок): | -40 дБ ~ 0 дБ ± 3 дБ | ||
| Выделить: | 30mm stereo sliding potentiometer B10K,45mm dual sliding potentiometer with warranty,travel sliding potentiometer for precision control |
||
Характер продукции

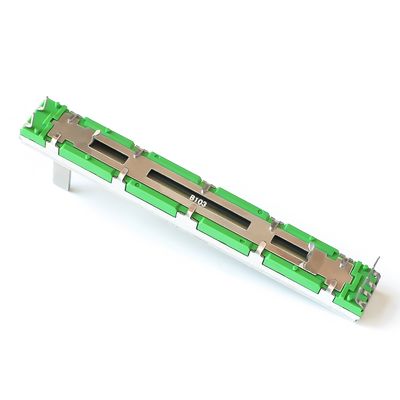

The WH3012P is a high-precision stereo dual sliding potentiometer featuring a 60mm travel range. This sliding resistor uses a resistance wire wound around insulation material with a sliding film contact point to regulate circuit resistance. Ideal for amplifiers, filters, and other electronic devices requiring precise resistance adjustment.
- Total length: 75mm (7.5cm)
- Width: 9mm (0.9cm)
- Thickness: 6.5mm (0.65cm)
- Handle height: 15mm (1.5cm), width: 4mm (0.4cm)
- Stroke length: 60mm (6cm)
- Pin configuration: 4-2 pins
- Resistance: A10K
- Channel: Dual channel
- Precision adjustment with smooth sliding operation
- High accuracy for sensitive electronic circuits
- Simple yet durable construction
- Wide resistance adjustment range
- Versatile applications in amplifiers, filters, and oscillators
| Parameter | Value |
|---|---|
| Total Resistance | 10K Ω±20% |
| Resistance Taper | A, B, C, D, E, MN, RD, W |
| Max. Operation Voltage | Linear Taper B: AC 200V~DC/V Other Tapers: AC 150V~DC/V |
| Rated Power | Single unit: Linear taper B: 0.2W, Other tapers: 0.05W Dual unit: Linear taper B: 0.1W, Other tapers: 0.025W |
| Sliding Noise | Less than 100mV |
| Insulation Resistance | More than 100MΩ at DC 250V |
| Withstand Voltage | 1 minute at AC 300V |
| Residual Resistance | Term. 1~2: Less than 10Ω Term. 2~3: Less than 10Ω |
| Gang Error (Dual Unit) | -40dB ~ 0dB ± 3dB |
| Parameter | Value |
|---|---|
| Total Sliding Travel | 60.0mm ± 0.5mm |
| Operating Force | 10~100gf |
| Sliding Stopper Strength | 5.0Kgf.cm Min. |
| Push-Pull Strength | 3.0Kgf.cm Min. at 5-10 sec |
| Number of Detents (Click) | 1C (Center Detent), 7C, 11C, 21C, 41C |
| Resistance to Soldering Heat | Solder dip: Preheating to 100℃ in 1 min, 260±5℃ for 5 sec Manual Soldering: Less than 300℃ for under 3 sec |
| Sliding Life | 10,000 cycles (Min.) |
This linear slide potentiometer is widely used in audio equipment, mechanical control systems, and instrumentation. Its reliable performance and straightforward design make it a preferred choice for electronic engineers and manufacturers.
