The MZ6T series is applied for motor protection PTC Thermistor
Подробная информация о продукте:
| Место происхождения: | Дунгуань, Гуандун, Китай |
| Фирменное наименование: | UCHI |
| Сертификация: | UL.VDE,SGS,REACH,CQC,CSA.ISO.ROHS,CUL |
| Номер модели: | МЗ6Т |
Оплата и доставка Условия:
| Количество мин заказа: | 1000 шт. |
|---|---|
| Цена: | Подлежит переговорам |
| Упаковывая детали: | масса |
| Время доставки: | 5-7 ДНЕЙ |
| Условия оплаты: | T/T, PayPal, западное соединение, грамм денег |
| Поставка способности: | 5000,000,000PCS в месяц |
|
Подробная информация |
|||
| Температура Кюри PTC: | 115±7°C | Время ответа: | Диапазон миллисекунд |
|---|---|---|---|
| Натяжение проволоки: | Под 10N, 10S напряжение без повреждения | Функции: | Долгая жизнь |
| Допуск температуры поверхности: | ±7℃ | Тип: | Термистор с положительным температурным коэффициентом (PTC) |
| Максимальная мощность: | 10mW | Диаметр: | 14 мм |
| Расстояние ведущих: | 5 мм | Максимальное рабочее напряжение: | 350 В. |
| толщина: | 2,5 мм макс | ||
| Выделить: | motor protection PTC thermistor,MZ6T series PTC thermistor,PTC thermistor with warranty |
||
Характер продукции
MZ6T Series | PTC Thermistor Dedicated for Motor Protection
Product Overview

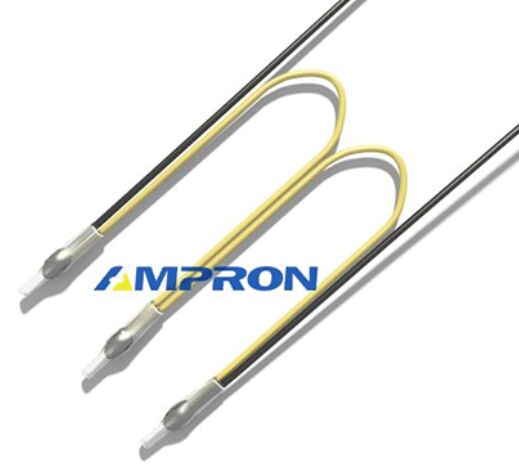

The MZ6T series is a wire-harness type PTC thermistor designed in accordance with international standards DIN 44081 / 44082, specially developed for over-temperature protection of motor windings and bearings. Embedded in the three-phase windings of motors, its resistance rises sharply when the temperature approaches the insulation class limit. Combined with a protector to cut off the power supply, it realizes rapid protection against overheating, overload and phase loss. It serves as a standard core temperature control component for industrial motors.
Working Principle
Low resistance at room temperature(R25 ≤ 100Ω / 300Ω), recognized as normal status by the protector;
When the motor overheats and the temperature reaches the operating temperature Tk, the resistance changes sharply to the kilo-ohm level;
Once the protector detects the high-resistance signal, it trips and shuts down immediately to prevent motor burnout;
The resistance automatically drops after cooling down. No replacement is required, and repeated use is available.
Core Features
✅ Standard Compliance: Compliant with DIN 44081/44082, compatible with mainstream temperature control modules (e.g. INT69);
✅ Ultra-compact Size: Chip size only 1.8×0.6 mm, easy to embed into windings without affecting insulation performance;
✅ Fast Response: Operates within ＜5 seconds under thermal overload or phase loss conditions, much faster than traditional thermal relays;
✅ Precise Temperature Control: Tk ranges from 60℃ to 180℃ (5℃ interval), tolerance ±5℃, perfectly matching motor insulation classes (Class B / F / H);
✅ Long-term Stability: Adopts ceramic substrate and insulated packaging, featuring vibration resistance, aging resistance and long service life;
✅ Flexible Installation: MZ6T adopts long lead wire harness design, suitable for winding embedding, bearing surface mounting and other working conditions.
Typical Applications
Industrial motors, water pump / fan motors, compressor motors;
Servo motors, stepping motors, new energy vehicle drive motors;
Transformers, reactors, high-power inductive coils;
Other electromagnetic equipment requiring overheating, overload and phase-loss protection.
Typical Electrical Parameters
| Item | Single-core (Type E) | Three-core Series (Type DS) |
|---|---|---|
| Operating Temperature Tk | 60～180℃ (5℃ step) | 60～180℃ (5℃ step) |
| Resistance at 25℃ (R25) | ≤100Ω | ≤300Ω |
| Resistance at Tk-5℃ | ≤550Ω | ≤1650Ω |
| Resistance at Tk+5℃ | ≥1300Ω | ≥4000Ω |
| Maximum Working Voltage | DC 25V | DC 25V |
| Response Time TD | ＜5s | ＜5s |
| Dielectric Strength | 2.5kV | 2.5kV |
Model Example
MZ6T-150-ES: Wire harness type, 150℃, single-core (suitable for Class B/F motors);
MZ6T-180-DS: Wire harness type, 180℃, three-core series connection (suitable for Class H motors).
